In this article, we are going to talk about another special feature of Chart Js, Let’s say I want to hide some data points in the line chart as shown in the below image. I have explored everywhere on the internet but couldn’t find the appropriate solution to achieve this task. so I decided to write this article.
For achieving this task, change pointRadius to an array-like below
pointRadius: [0, 0, 0, 0, 0, 0, 5, 0, 0, 0, 5]
0=hide datapoint, greater than zero means it shows the point.
Look below configuration
data: {
labels: xValues,
datasets: [
{
label: 'Sale',
lineTension: 0,
borderColor: 'red',
data: [343, 343, 8, 550, 89, 89, 898, 232, 343, 243, 554],
pointRadius: [0, 0, 0, 0, 0, 0, 5, 0, 0, 0, 5]
}
]
}
How to hide some points inside line graph Chart Js
<!DOCTYPE html>
<html>
<head>
<title>ChartJS-Hide Points in Line Chart</title>
<script src="https://cdn.jsdelivr.net/npm/chart.js@3.7.1/dist/chart.min.js"></script>
</head>
<body>
<div style="margin-left:5%;margin-right:5%">
<canvas id="myLineChart" style="width:100%;max-width:100%"></canvas>
</div>
<script>
var xValues = [2011, 2012, 2013, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022];
const MultiLinechartData = {
type: "line",
data: {
labels: xValues,
datasets: [
{
label: 'Sale',
lineTension: 0,
borderColor: 'red',
data: [343, 343, 8, 550, 89, 89, 898, 232, 343, 243, 554],
pointRadius: [0, 0, 0, 0, 0, 0, 5, 0, 0, 0, 5]
}
]
},
options: {
plugins: {
title: {
display: true,
text: 'Sale Chart',
}
},
scales: {
x: {
display: true,
title: {
display: true,
text: 'Year'
}
},
y: {
display: true,
title: {
display: true,
text: 'Sale($)'
}
}
}
}
};
new Chart("myLineChart", MultiLinechartData);
</script>
</body>
</html>

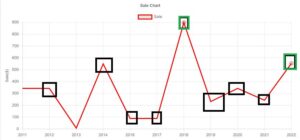

Output Graph
*Thank you so much if you have a question please comment
So it creates some curves and we will do that by putting in the tension here. If we say tension 0.4, by default it is set on zero which means that we have these straight lines but once put on 0.4 it becomes far more elastic. Once we do that we have a nicer smooth line with more elasticity. Next what I want to do is I want to increase the thickness of here border.
This thickness should be done about three pixels. All right, so now we have this. How do we remove these points items here? So basically these point items are based on the point radius. So all we have to do here is put a comma it’s a point radius and I’m going to indicate here zero pixels.
It would indicate that the radius or the circle radius will be equal to zero pixels. And by default, it’s probably like five to ten pixels. If I refresh now, you can see now our dots have been disappearing here and of course, we still have here what we call the hoovering effect here. We can remove this as well. To do this all you have to do is a comma and then we say Hoover coin radius.
Pay attention here to the capital P and the capital R. Same story here. Then we say here as well zero. Save that refresh. Now if you hook over it you might notice here we have hardly anything here and I guess the tooltip is there we are.
I do notice here something so I just have to check what it is. So I just quickly checked apparently I made a tiny mistake. Instead of Hoover point radius, it is point Hoover radius. Point Hoover radius still with capital H, capital R here. Also on zero.
Save that refresh and now if you go over it here you might see it here. Let’s see this is very tough. There we are. So we move over it. We don’t have any Hoover effect here on it.
But of course, it’s quite hard to pinpoint the exact dots or Pixel here where you have to Hover over and that’s basically here how you can make a smooth line here including the Hoover and removing the Hoover point radius as well.
