How to leave just points without lines in ChartJS

How to leave just points without lines in ChartJS

In this article, we’re going to answer the question of How to leave just points without lines in ChartJS. Basically, we want to remove the connecting lines between dots, because we just want to show the dots in the line chart instead of connecting line.

How to leave just points without lines in ChartJS

To hide the line chart and only show the dots, we just need to set the showLine property of chart js to false.As shown in below example.

 datasets: [
                    {
                        label: 'Sale',
                        lineTension: 0,
                        borderColor: 'red',
                        data: [343, 343, 8, 550, 89, 89, 898, 232, 343, 243, 554],
                        pointBackgroundColor: 'red',
                        pointRadius: 6,
                        showLine: false
                    }
                ]

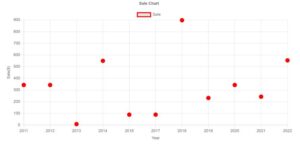

Show just points without lines

<!DOCTYPE html>
<html>
<head>
    <title>ChartJS-How to leave just points without lines</title>
    <script src="https://cdn.jsdelivr.net/npm/[email protected]/dist/chart.min.js"></script>
</head>
<body>
    <div style="margin-left:5%;margin-right:5%">
        <canvas id="myLineChart" style="width:100%;max-width:100%"></canvas>
    </div>
    <script>
        var xValues = [2011, 2012, 2013, 2014, 2016, 2017, 2018, 2019, 2020, 2021, 2022];
        const MultiLinechartData = {
            type: "line",
            data: {
                labels: xValues,
                datasets: [
                    {
                        label: 'Sale',
                        lineTension: 0,
                        borderColor: 'red',
                        data: [343, 343, 8, 550, 89, 89, 898, 232, 343, 243, 554],
                        pointBackgroundColor: 'red',
                        pointRadius: 6,
                        showLine: false //this line very importnent for hiding lines
                    }
                ]
            },
            options: {
                plugins: {
                    title: {
                        display: true,
                        text: 'Sale Chart',
                    }
                },
                scales: {
                    x: {
                        display: true,
                        title: {
                            display: true,
                            text: 'Year'
                        }
                    },
                    y: {
                        display: true,
                        title: {
                            display: true,
                            text: 'Sale($)'
                        }
                    }
                }
            }
        };
        new Chart("myLineChart", MultiLinechartData);
    </script>

</body>
</html>

*Thank you so much if you have a question please comment
